Structure of special materials provides excellent anti-tear properties

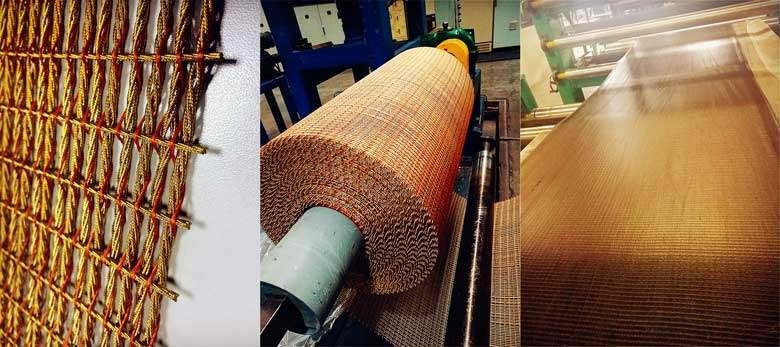

The IW/SW steel mesh structure will make the conveyor belt meet great anti-tear properties which can effectively prevent against being pierced.
Excellent impact resistant performance
The IW/SW steel mesh uses elongation type steel in warp and high elongation steel in weft.The outstanding extension of the material will absorb more impact energy and thus provide excellent impact resistant performance.
Various cover types
Various types of rubber cover can meet different conditions.High temperature resistant rubber cover has excellent performance in conveying materials under high temperature conditions.But the conveying distance is better to be less than 2km.
| IW Steel Mesh Conveyor Belt Technical Parameters |
| Type | Tensile
strength
KN/m | Carcass
thickness
mm | Carcass
weight
Kg/m² | Cord
diameter in
warp mm | Cord
pitch in
warp
mm | Cord
diameter in
weft mm | Cord
pitch in
weft
mm | Min.cover
thickness
(mm) |
| IW500 | 500 | 3.2 | 2.45 | 2.00 | 5.81 | 1.52 | 17.5 | 2.5 |
| IW630 | 630 | 3.2 | 2.95 | 2.00 | 4.63 | 1.52 | 17.5 | 2.5 |
| IW800 | 800 | 4.5 | 4.15 | 2.85 | 6.67 | 2.10 | 20.0 | 3.0 |
| IW1000 | 1000 | 4.5 | 5.00 | 2.85 | 5.38 | 2.10 | 20.0 | 3.0 |
| IW1250 | 1250 | 6.0 | 6.35 | 3.90 | 7.04 | 2.40 | 20.0 | 3.5 |
| IW1400 | 1400 | 6.0 | 7.05 | 3.90 | 6.25 | 2.40 | 20.0 | 3.5 |
| IW1600 | 1600 | 6.0 | 7.90 | 3.90 | 5.50 | 2.40 | 20.0 | 3.5 |
| IW2000 | 2000 | 6.0 | 8.50 | 3.90 | 4.65 | 2.40 | 20.0 | 3.5 |
| SW Steel Mesh Conveyor Belt Technical Parameters |
| Type | Tensile
strength
KN/m | Carcass
thickness
mm | Carcass
weight
Kg/m² | Cord
diameter in
Warp mm | Cord
pitch in
warp
mm | Cord
diameter in
weft mm | Cord
pitch in
weft
mm | Min.cover
thickness
(mm) |
| SW500 | 500 | 4.6 | 3.10 | 2.00 | 5.81 | 1.29 | 6.67 | 2.5 |
| SW630 | 630 | 4.6 | 3.60 | 2.00 | 4.63 | 1.29 | 6.67 | 2.5 |
| SW800 | 800 | 5.4 | 4.55 | 2.85 | 6.67 | 1.29 | 6.67 | 3.0 |
| SW1000 | 1000 | 5.4 | 5.40 | 2.85 | 5.38 | 1.29 | 6.67 | 3.0 |
| SW1250 | 1250 | 6.3 | 6.50 | 3.90 | 7.04 | 1.29 | 6.67 | 3.5 |
| SW1400 | 1400 | 6.3 | 7.25 | 3.90 | 6.25 | 1.29 | 6.67 | 3.5 |
| SW1600 | 1600 | 6.3 | 8.10 | 3.90 | 5.50 | 1.29 | 6.67 | 3.5 |
| SW2000 | 2000 | 6.3 | 9.30 | 3.90 | 4.65 | 1.29 | 6.67 | 3.5 |
