Product Details

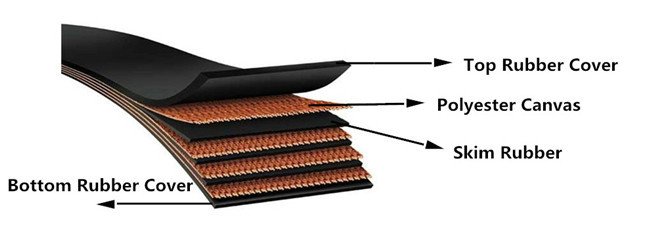

EP Fabric Conveyor Belt: This kind of belt has good elasticity,low elongation in use,heat resistant and anti-shock,suitable for middle/long distance and high speed conveying with heavy load capacity.

NN Fabric Conveyor Belt: This kind of belt has good elasticity and high tensile strength,anti-shock,warp resistant,easy to trough and low elongation,suitable for for middle/long distance and high speed conveying with heavy load capacity.

Cotton Fabric Conveyor Belt(CC56): A kind of traditional conveyor belt,suitable for short/middle distance conveying.

Specification Details:

Belt Type	Fabric Type	Fabric Thickness (mm)	Ply	Width (mm)	Top Cover Thickness (mm)	Bottom Cover Thickness (mm)	Total Thickness (mm)	Tensile Strength (Mpa)
EP Conveyor Belt	EP100	1.0	1-10	300-6000	1-20	0-10	5-40	8-25
	EP125	1.0
	EP150	1.1
	EP200	1.2
	EP250	1.4
	EP300	1.6
	EP350	1.8
	EP400	2.0
	EP500	2.2
NN Conveyor Belt	NN100	1.0	1-10	300-6000	1-20	0-10	5-40	8-25
	NN125	1.0
	NN150	1.1
	NN200	1.2
	NN250	1.4
	NN300	1.6
	NN350	1.8
	NN400	2.0
	NN500	2.2
Cotton Conveyor Belt	CC56	1.0	1-10	300-6000	1-20	0-10	5-40	8-25

Recommend Min. Pulley Diameter of Conveyor:

Puley Dia. Ply Number Belt Type Fabic Code		2	3	4	5	6	7	8	9	10
Nylon Belt	NN100	200	250	315	400	500	630	800	1000	1250
	NN125	200	250	315	400	500	630	800	1000	1250
	NN150	200	250	315	400	500	630	800	1000	1250
	NN200	250	315	400	500	630	800	1000	1250	1400
	NN250	315	400	500	630	800	1000	1250	1250	1400
	NN300	400	500	630	800	1000	1250	1400	1400	1600
	NN400	500	630	800	1000	1250	1400	1600	1600	1800
	NN500	630	800	1000	1250	1400	1600	1800
	NN600	800	1000	1250	1400	1600	1800	2000
EP Belt	EP100	200	250	315	400	500	630	800
	EP125	200	250	315	400	500	630	800
	EP160	250	400	500	630	800	1000	1250
	EP200	315	500	630	800	1000	1250	1400
	EP250	400	630	800	1000	1250	1400	1600
	EP300	500	630	800	1000	1250	1400	1600
	EP400	630	800	1000	1250	1400	1600	1800
	EP500	800	1000	1250	1400	1600
	EP600	1000	1250	1400	1600	1800

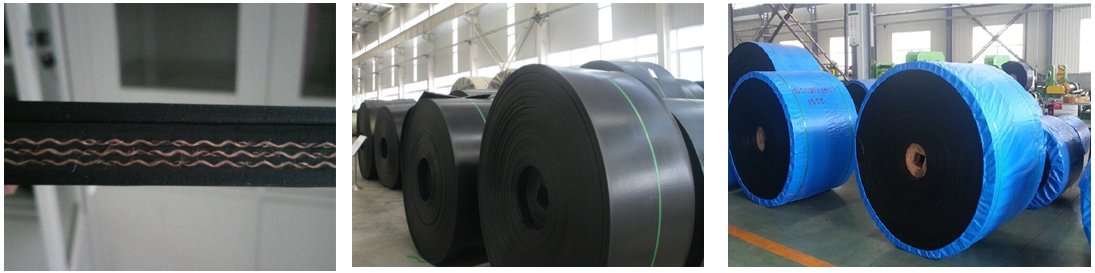

Products & Packages:
