Steel Cord Conveyor Belt has the properties of high tensile strength,long-life in use,little elongation,good through ability and flexing resistance,suitable for large span,long distance and heavy load transportation of materials.Widely used in fields of coal mine,mining industry,harbour,metallurgy industry,power station,chemical plants,etc.

Share To:

Inquiry Now

Product Details
Inquiry Now
You May Like

Product Details

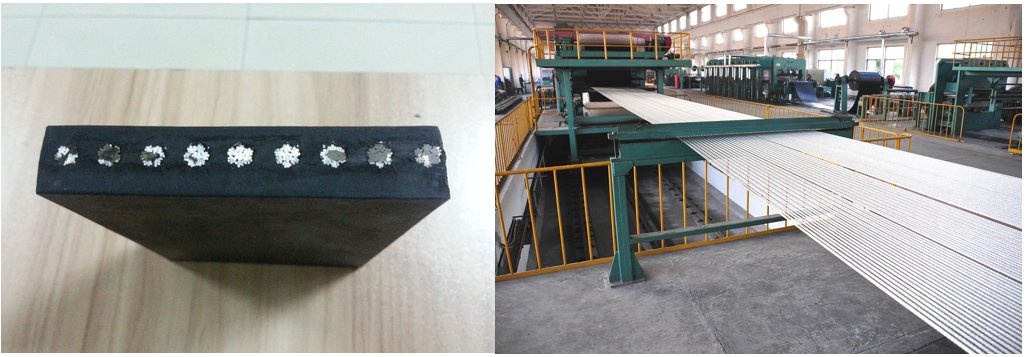

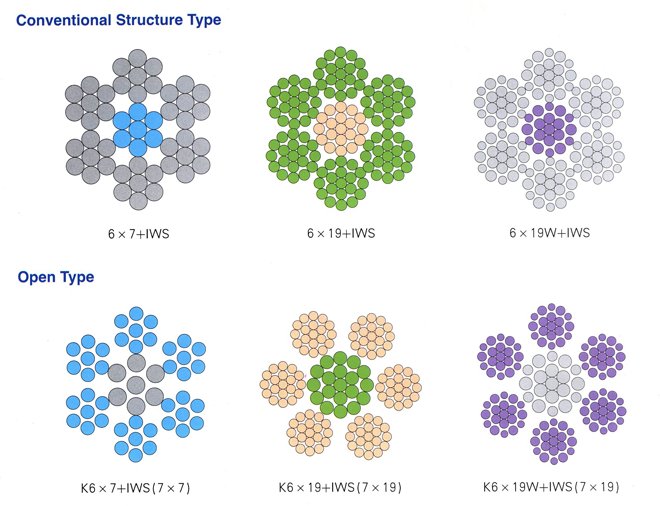

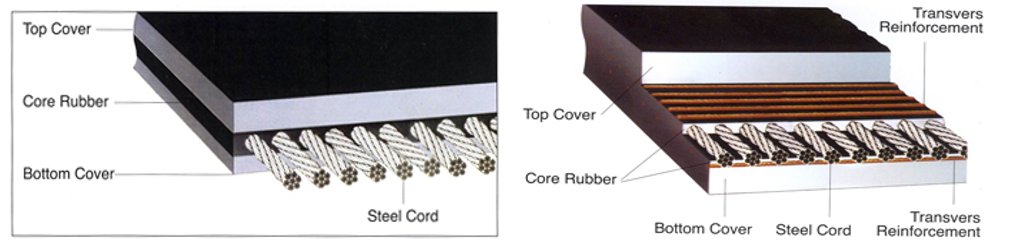

Steel Cord Type:

Specification Details:

The Main Technical Data for National standards GB/T9770 Steel Cord Conveyor Belt
Belt Strength/ Technical Required lItems	St 630	St 800	St 1000	St 1250	St 1600	St 2000	St 2500	St 3150	St 3500	St 4000	St 4500	St 5000	St 5400
Longitudinal tensile strength N/mm	630	800	1000	1250	1600	2000	2500	3150	3500	4000	4500	5000	5400
Max.Dia.of Crod mm	30	35	4.0	4.5	5.0	6.0	7.2	8.1	8.6	8.9	9.7	10.9	11.3
Pitch of Cord mm±1,5	10	10	12	12	12	12	15	15	15	16	16	17	17
Top Cover Thickness mm	5	5	6	6	6	8	8	8	8	8	8	8.5	9
Bottom Cover Thickness mm	5	5	6	6	6	6	6	8	8	8	8	85	9
*Reference Belt Mass kg/m²	18	195	21.5	22.2	26.1	33.1	353	41.1	45	45	51	59	62
Width mm	Ends of Steel Cord
800	75	75	63	63	63	63	50	50	50
1000	95	95	79	79	79	79	64	64	64	64	59	55	55
1200	113	113	94	94	94	94	76	76	77	77	71	66	66
1400	133	133	111	111	111	111	89	89	90	90	84	78	78
1600	151	151	126	126	126	126	101	101	104	104	96	90	90
1800		171	143	143	143	143	114	114	117	117	109	102	102
2000			159	159	159	159	128	128	130	130	121	113	113
2200						176	141	141	144	144	134	125	125
2400						193	155	155	157	157	146	137	137
2600						209	168	168	170	170	159	149	149
2800									194	194	171	161	161

The Main Technical Data for DIN22131
Type		St1000	St1250	St1600	St2000	St2500	St3150	St3500	St4000	St4500	St5000	St5400
Min.Tensile strength N/mm		1000	1250	1600	2000	2500	3150	3500	4000	4500	5000	5400
Dia.Of Cord (Max.),mm		4.1	4.9	5.6	5.6	7.2	8.1	8.6	8.9	9.7	10.9	11.3
Pitch of cord, mm±1.5		12	14	15	12	15	15	15	15	16	17	17
Cover Thickness (min)mm		4	4	4	4	5	5.5	6.5	7	7.5	8
width,mm
Norminal Dimensien	Tolerence	Ends of Steel Cord
500	±5	39	34	一	一	一	一	一	一	一	一	一
650	±7	51	44	一		一	一	一	一	一	一	一
800	±8	64	55	50	64	一	一	一	一	一	一	一
1000	±10	81	69	64	81	64	64	64	64	59	55	55
1200	±10	97	84	77	97	77	77	77	77	71	66	66
1400	±12	114	98	90	114	90	90	90	90	84	78	78
1600	±12	131	112	104	131	104	104	104	104	96	90	90
1800	±14	147	127	117	147	117	117	117	117	109	102	102
2000	±14	164	141	130	164	130	130	130	130	121	113	113
2200	±15	181	155	144	18	144	144	144	144	134	125	125
2400	±15	197	169	157	197	157	157	157	157	146	137	137
2600	±15	214	184	170	214	170	170	170	170	159	149	149
2800	±15	231	198	170	214	170	170	170	170	159	149	149
3000	±15	247	212	197	247	197	197	197	197	184	172	172
3200	±15	264		210	264	210	210	210	210	196	184	184

Recommend Min. Pulley Diameter of Conveyor:

Type of Belts	St630	St800	St1000	St1250	St1600	St2000	St2500	St3150	St3500	St4000	St4500	St5000	St5400
Min.Pullo Dia,of Conveyor mm	500	500	630	800	1000	1000	1250	1400	1600	1600	1600	1800	1800
