Chevron Conveyor Belt

Chevron conveyor belt is suitable for conveying powered,granulated,lumped,or bagged materials on inclined surface with angles of no more than 40 degrees.

Share To:

Inquiry Now

Product Details
Inquiry Now
You May Like

Product Details

Features:

Anti-slip;cleats and top cover rubber are vulcanized integrally;cleat pattern,angle and pitch are designed elaborately.

Shape and characteristic:

On the surface of the belt,there is chevron pattern higher than the belt body,the pattern may be either open-end or closed,each kind of pattern includes three types:high.medium and low.

We can produce V type:

C-2.5mm,C5mm,C8mm,C10mm,C15mm,C17mm,C25mm,C32mm.

Specification Details:

Chevron Type	Chevron Height (mm)	Convex/Concave	Chevon Pitch (mm)	Chevron Width (mm)	Mini Width (mm)	Max Width (mm)

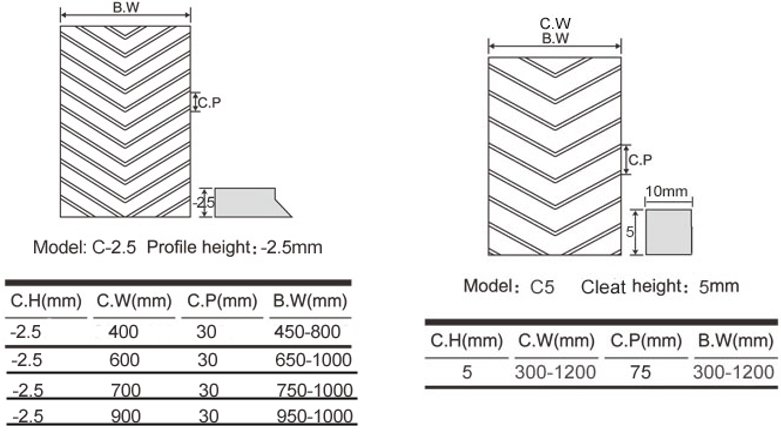

C2.5	-2.5	Concave	30	400/600/700/900	450	1000
C5	5	Convex	75	1200	300	1200
C8	8	Convex	250	1200	300	1200

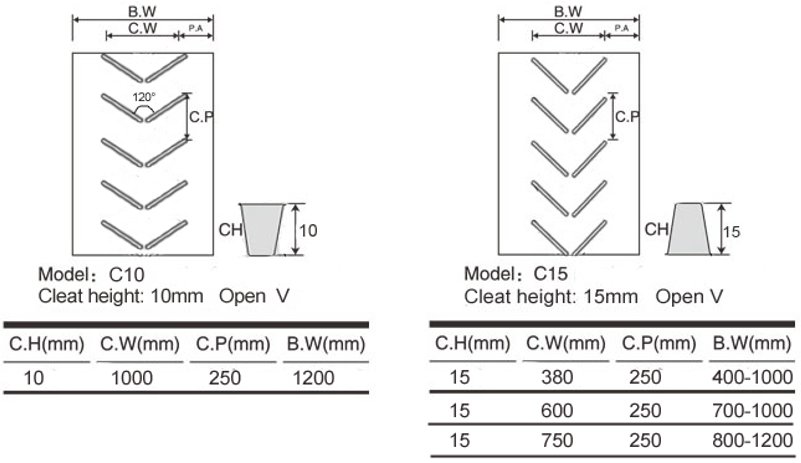

C10	10	Convex	250	1000	300	1200
C15	15	Convex	250	380/600/750	400	1200

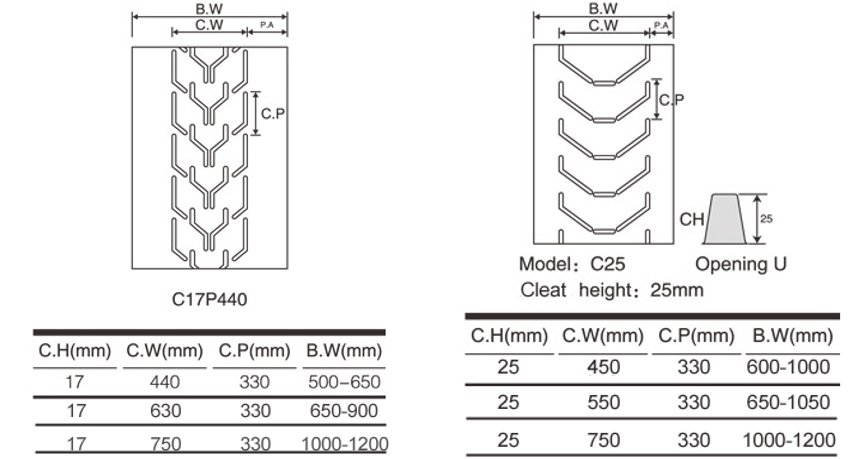

C17	17	Convex	330	440/630/750	500	1200
C25	25	Convex	330	450/550/750	600	1200
C32	32	Convex	330	460/550/630/500	600	1500
